Heavy Plates - 3mm

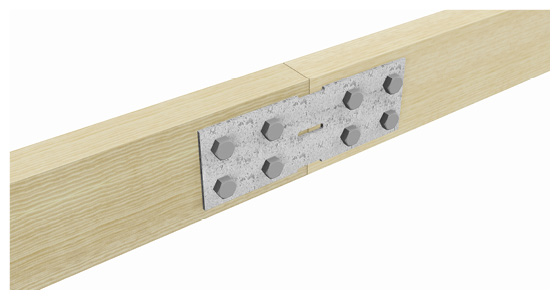

Galvabond plates with M10 holes to suit just about any flat connecting project you can think of
Applications
Product Specification |
Product Code |
|---|---|

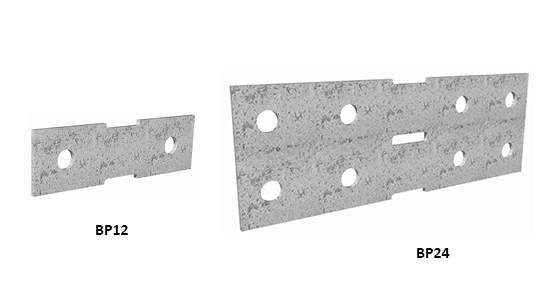

| 120 x 35 x 3mm - M10 Holes - Galvanised | BP12 |

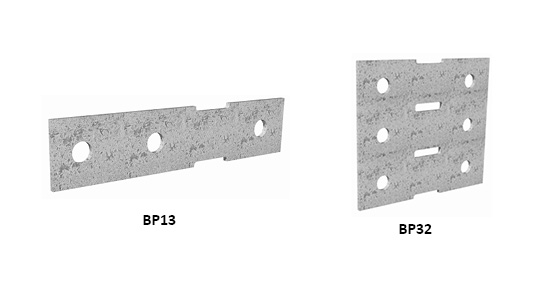

| 160 x 35 x 3mm - M10 Holes - Galvanised | BP13 |

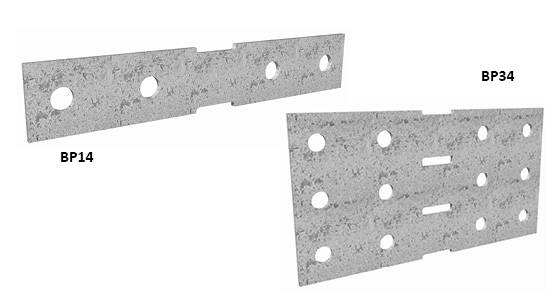

| 200 x 35 x 3mm - M10 Holes - Galvanised | BP14 |

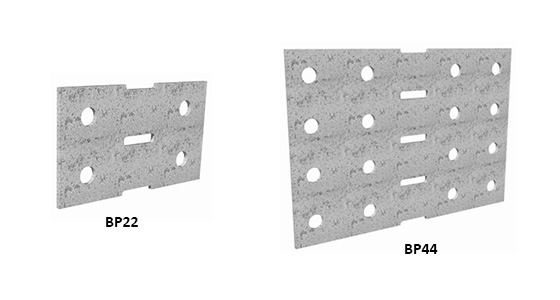

| 120 x 70 x 3mm - M10 Holes - Galvanised | BP22 |

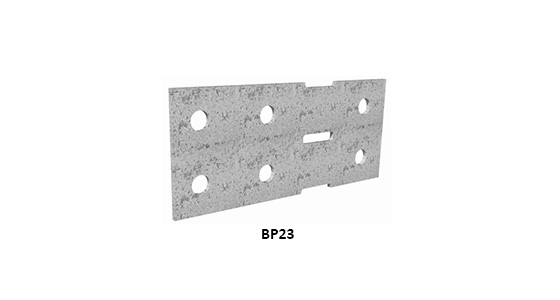

| 160 x 70 x 3mm - M10 Holes - Galvanised | BP23 |
| 200 x 70 x 3mm - M10 Holes - Galvanised | BP24 |
| 120 x 105 x 3mm - M10 Holes - Galvanised | BP32 |
| 200 x 105 x 3mm - M10 Holes - Galvanised | BP34 |
| 200 x 140 x 3mm - M10 Holes - Galvanised | BP44 |
Material Specification | |
|---|---|
| Thickness: | 3.0mm |
| Material: | G300-Z275 |
