Type E - Centre Fix Blade - M10/M12 Holes - 75mm Width Blade

Hot dip galvanised centre blade fix post shoes

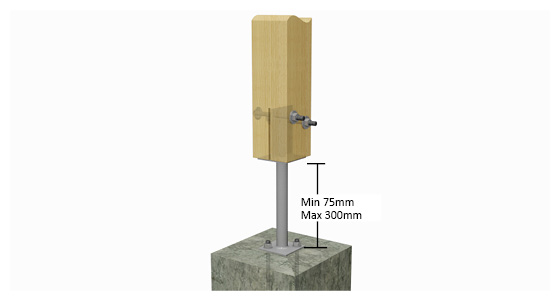

Applications - M10

  1. Fix two anchors through the base plate to concrete.
  2. Ensure anchor fixing and footing detail are adequate enough to resist the wind load upward and dead plus live load downward.
  3. Fix timber post to steel post anchor with 2/M10 bolts.
  4. Use 2.5mm thickness - Ø45mm round washers OR 40mm square washers as per AS1720.1-2010

Termite Protection

Keep minimum of 75mm clearance

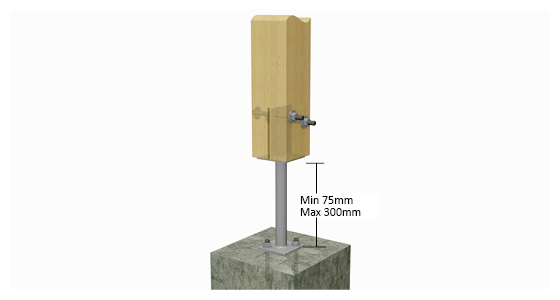

Applications - M12

  1. Fix two anchors through the base plate to concrete.
  2. Ensure anchor fixing and footing detail are adequate enough to resist the wind load upward and dead plus live load downward.
  3. Fix timber post to steel post anchor with 2/M12 bolts.
  4. Use 3.0mm thickness - Ø55mm round washers OR 50mm square washers as per AS1720.1-2010

Termite Protection

Keep minimum of 75mm clearance

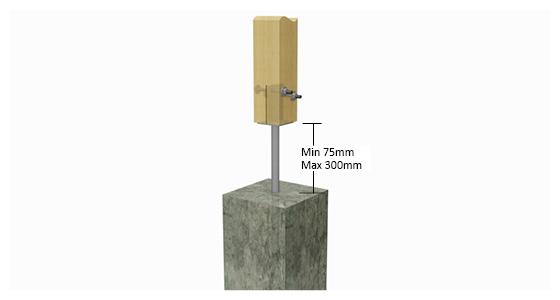

Applications - Cast-in

  1. Set the post anchor into wet concrete base with designed embedment depth.
  2. Ensure concrete based are dried and adequate enough to resist the wind load upward and deal plus live load downward.
  3. Fix timber post to steel post anchor with 2/M12 bolts.
  4. Use 3.0mm thickness - Ø55mm round washers OR 50mm square washers as per AS1720.1-2010

Termite Protection

Keep minimum of 75mm and maximum of 400mm clearance from base.

Embedment Depth

Supporting slab to be designed by others.


Product Specification - M10

Product Code

200 Leg x 4mm - Hot Dipped Galvanised BPAE3HDG
300 Leg x 4mm - Hot Dipped Galvanised BPAE4HDG

Material Specification


Thickness: 4.0mm
Material: Hot dipped galvanised corrosion protection


Product Specification - M12

Product Code

200 Leg x 4mm - Hot Dipped Galvanised BPA12E3HDG
300 Leg x 4mm - Hot Dipped Galvanised BPA12E4HDG
450 Leg x 4mm - Hot Dipped Galvanised BPA12E5HDG
600 Leg x 4mm - Hot Dipped Galvanised BPA12E6HDG

Material Specification


Thickness: 4.0mm
Material: Hot dipped galvanised corrosion protection



Log in to view design loads
