Internal Wall Brackets

Australian made galvabond brackets used to fasten internal walls to roof trusses


Applications above non-loadbearing walls

Wall is parallel to truss

Wall is perpendicular to truss

Applications above non-loadbearing bracing walls

Wall is parallel to truss

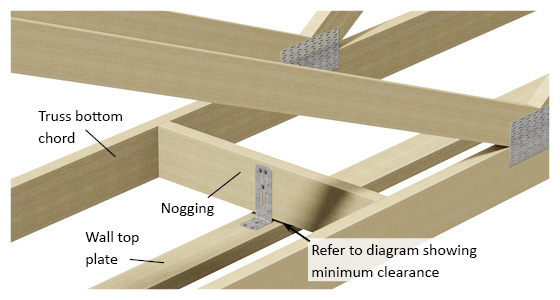

  1. Fix to the wall top plate with 3/30mm x 2.8Ø Dunnings nails.
  2. Fix to truss bottom chord or nogging with 3/30mm x 2.8Ø Dunnings nails.
    Allow 3mm gap between nail head and bracket.

Wall is perpendicular to truss

Note:

  • Nails to the bottom chord of a roof truss must be located at the top of the slots to allow downward movement of the chord under load.
  • Do not fix too tightly or deform the Internal Wall Bracket in the process of nailing.
  • To be installed at 1800 centres maximum on internal walls.
  • Fixing of block pieces or nogging to wall top plate in accordance with AS1684 series

Fixing




Minimum Clearence




Product Specification

Product Code

Hitch - Flanged (Not Stackable)
122 x 55 x 40 x 1mm Galvanised
BDH
Hitch - Stackable
122 x 55 x 40 x 1mm Galvanised
BDHS

Material Specification


Thickness: 1.0mm
Material: G300-Z275

Nails


BN 30 x 2.8mm Galvanised Timber Connector nails
