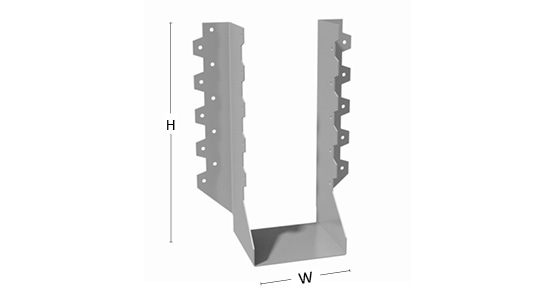

Large Joist Support / Framing Bracket - Marine Grade Stainless Steel

High corrosion resistant stainless steel based preformed brackets for connecting joists to bearers


Applications

The Dunnings Large Joist Support is designed to primarily suit Floor Joists and also to support large size timber beams.

The application of Dunnings Large Joist Support is simple.

Position the Floor Joist hard against the supporting member and secure the Large Joist Support to the member using a minimum of 6/30mm x 2.8Ø Dunnings nails in each wing and 3/30mm x 2.8Ø Dunnings nails into the supported member.


Product Specification

Product Code

128 x 46 x 1mm

SBLJS140X45

126 x 51 x 1mm SBLJS140X50
 173 x 46 x 1mm SBLJS180X45
171 x 51 x 1mm SBLJS180X50
211 x 46 x 1mm SBLJS220X45
208 x 51 x 1mm SBLJS220X50

Material Specification


Thickness: 0.9mm
Material: Minimum Grade 316 Stainless Steel

Nails


SBN 30 x 2.8mm Stainless Timber Connector nails



Log in to view design loads
