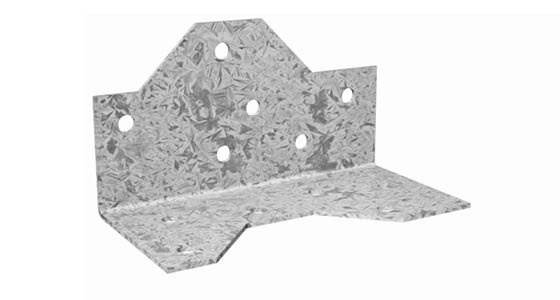

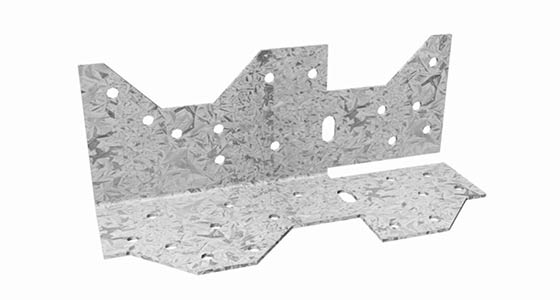

Timber Loks

Australian made galvabond timber connectors flat and bent big and small for all general fixing purposes


Applications - Option A

Jack flyovers to truncated truss

Ceiling joist to hanging beam

Studs to bottom plates

Truss to top plate


Applications - Option B




Fixing

Timber Loks should be secured with at least 9/30mm x 2.8Ø Dunnings nails.

You can bend the bottom legs to suit a variety of applications as shown in Option A




Product Specification

Product Code

Type 3 - 1mm - (T) x 110mm (L) - Galvanised BTL3
Type 4 - 1mm (T) x 110mm (L) - Galvanised BTL4
Mini - 1mm (T) x 66mm (L) - Galvanised BTLM
Universal - 1mm (T) x 100mm (L) - Galvanised BTLU

Material Specification


Thickness: 1.0mm
Material: G300-Z275

Nails


BN 30 x 2.8mm Galvanised Timber Connector nails

Log in to view design loads
