Universal Loks - Marine Grade Stainless Steel


Applications - Option A

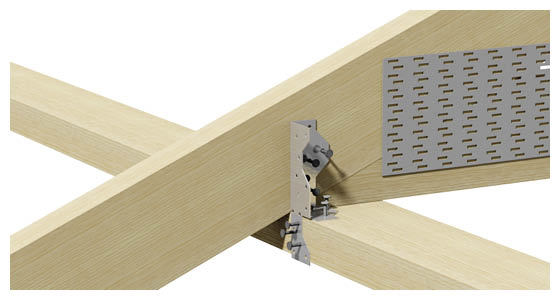

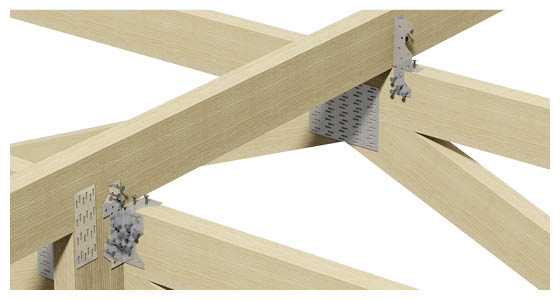

Jack flyovers to truncated truss

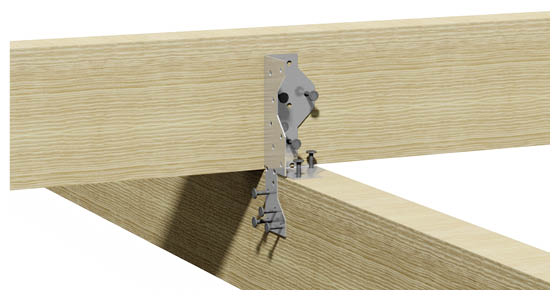

Ceiling joist to hanging beam

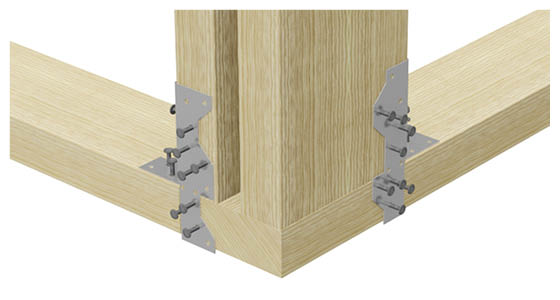

Studs to bottom plates

Truss to top plate

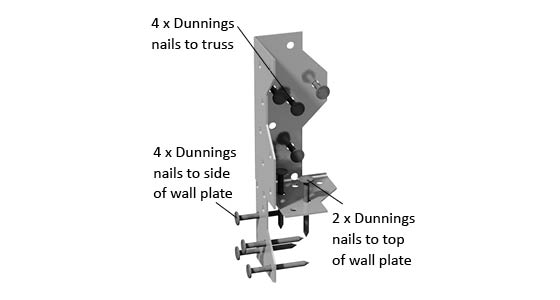

Fixing

Universal Loks should be secured with at least 10/30mm x 2.8Ø Dunnings nails.

You can bend the bottom legs to suit a variety of applications as shown in Option A

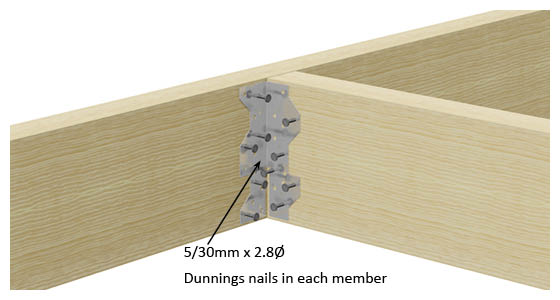

Applications - Option B



Product Specification

Product Code

Universal - 1mm

SBTLU

Material Specification


Thickness: 0.9mm
Material: Minimum Grade 316 Stainless Steel

Nails



SBN 30 x 2.8mm Stainless Timber Connector nails





Log in to view design loads
