Unities

Australian made high corrosion resistant stainless steel timber connectors idea for connecting timbers at 90 degrees to each other


Applications

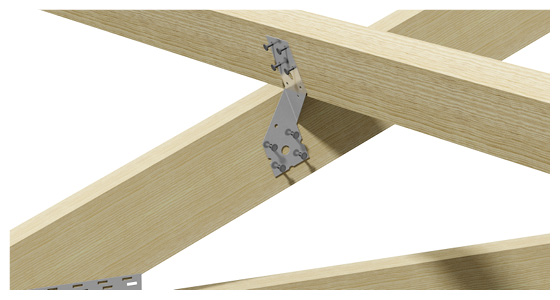

Joining timber at right angles

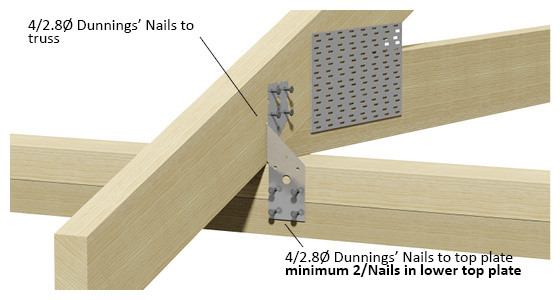

For tie down to double top plates

Purlin

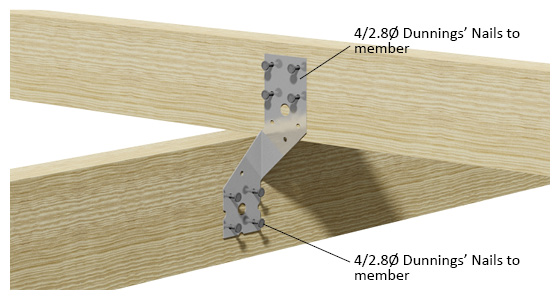

Install the Unities as shown to achieve twice the load in the Limit State Design Load table.

Nailing into both sides of a single 35mm truss is not recommended as it may cause the timber to split.


Product Specification

Product Code

Left Hand - nom 1mm SBUNITL
Right Hand - nom 1mm SBUNITR

Material Specification


Thickness: 0.9mm
Material: Minimum Grade 316 Stainless Steel

Nails


SBN 30 x 2.8mm Stainless Timber Connector nails



Log in to view design loads
