Triple Loks - Marine Grade Stainless Steel

Australian made High corrosion resistant stainless steel providing fixings onto three separate surfaces for maximum strength jointing


Applications

Triple Grips are typically used for the following applications:

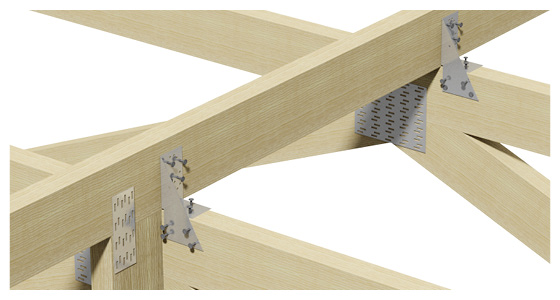

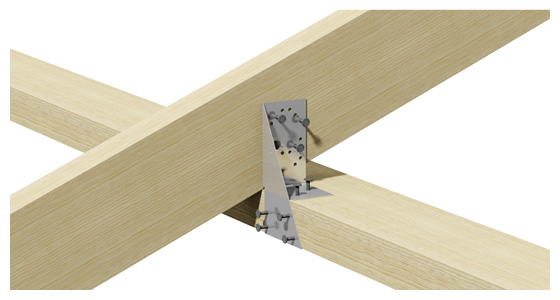

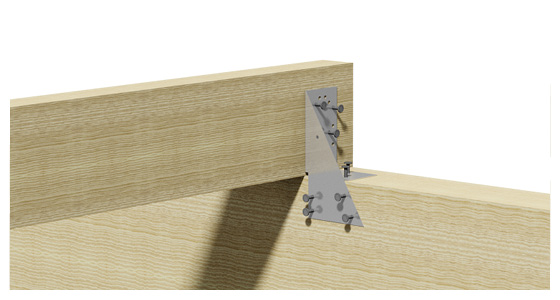

Connecting of Rafters to Wall Plate

Connecting of Roof Trusses to Wall Plate

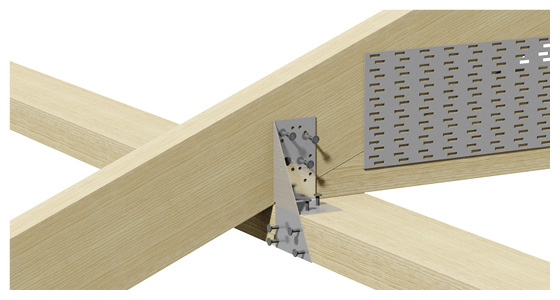

Jack flyovers to truncated truss

Connect Joist to Bearer


Fixing

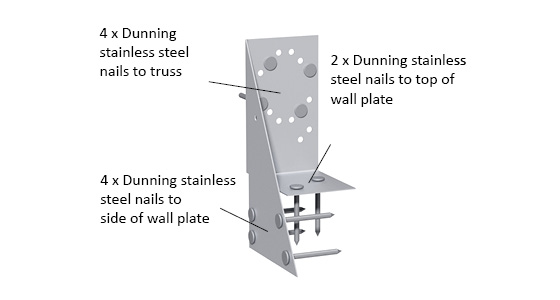

A minimum of 10/30mm x 2.8Ø Dunning stainless steel nails must be used to fix each Triple Lock for full tabulated values.


Product Specification

Product Code

Left Hand - nom 1mm SBTRL1L
Right Hand - nom 1mm SBTRL1R

Material Specification


Thickness: 0.9mm
Material: Minimum Grade 316 Stainless Steel

Nails


BN 30 x 2.8mm Galvanised Timber Connector nails



Log in to view design loads
